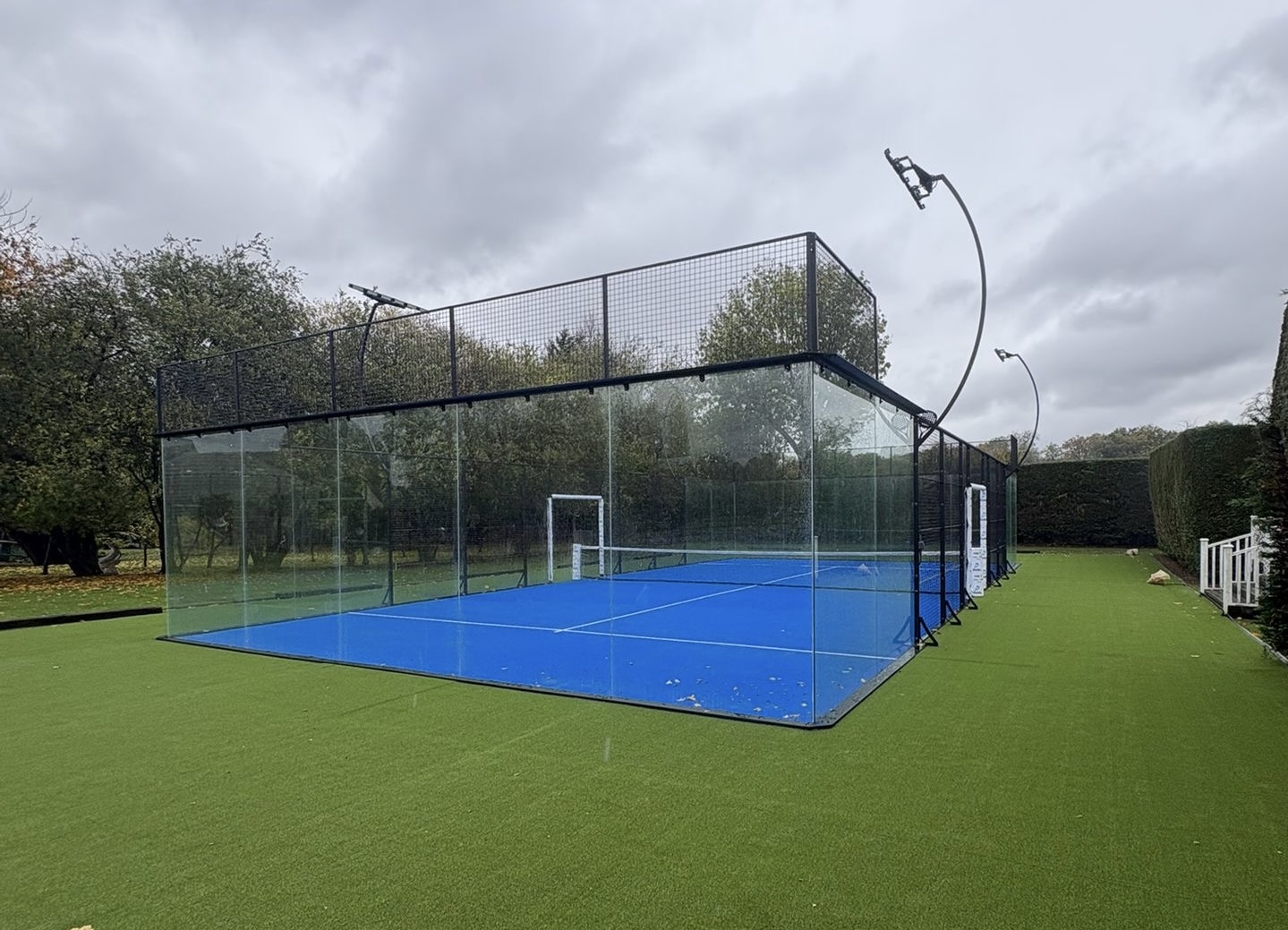

Panoramic Pro Padel Court
The ultimate viewing experience with seamless glass corners. Engineered for central courts and premium clubs, offering spectators an unobstructed, TV-ready view while providing players with the highest structural integrity.
Key Features:
- Seamless Viewing: No structural pillars in the 3m glass corners.
- CE Certified Glass: 12mm tempered glass, mounted on 5mm neoprene.
- Maximum Durability: Hot-dip galvanized steel (UNE-EN ISO 1461).
- WPT Turf: 10mm textured or 12mm monofilament options.
Technical Specifications
Manufactured entirely in-house at our factory, the Panoramic Pro model meets and exceeds the structural requirements set by the International Padel Federation (FIP).
Dimensions
| Playing Area | 20.00m x 10.00m (Internal) |
|---|---|
| Total Footprint | 20.40m x 10.40m |
| Height | 3m (Sides) / 4m (Ends) |
Steel Structure
| Material | Structural Steel tube 100x50x2mm |
|---|---|
| Anti-corrosion | Hot-dip galvanized (Optional) |
| Finish | Baked powder coating (Custom RAL) |
Glass System
| Type | Tempered Safety Glass (CE) |
|---|---|
| Thickness | 12mm (Standard for Panoramic) |
| Panels | 18 panels (2x3m) |
Turf & Net
| Turf Options | 10mm Textured / 12mm Monofilament |
|---|---|
| Sand Filling | Silica sand (0.3-0.8mm) |
| Net System | Professional net with hidden tensioner |
Customization & Components
Tailor your Panoramic Pro court to match your club's aesthetic and operational requirements.
Professional LED Lighting
Choose between 4 or 8 light poles. Our 200W LED floodlights are designed with asymmetrical lenses to provide perfect illumination (up to 500 lux) while preventing glare for players.
Color Customization
The steel structure can be painted in any RAL color to match your corporate identity. Turf is available in Blue, Green, Red Clay, or Purple.
Out-of-Court Play Doors
Our doors are designed according to WPT standards, allowing safe exits for out-of-court play. We include custom-printed net post protectors with your logo.
Export & Container Loading
As an export-oriented factory, we know that shipping efficiency and cargo safety are just as important as the product itself.
-
Secure Glass Packaging
All 12mm tempered glass panels are packed in custom wooden A-frames to guarantee zero breakage during ocean transit.
-
Container Optimization
A standard 40ft High Cube (40HQ) container can perfectly fit 3 complete Panoramic Courts, minimizing your shipping cost per unit.
Easy Local Assembly
We've engineered our courts to be assembled by any competent local contractor, eliminating the need for expensive imported installation teams.
-
Foundation Drawings Provided
We provide detailed ring beam and porous concrete slab requirements for your civil works team.
-
3D Manuals & Video Support
Includes step-by-step 3D assembly manuals. Our engineering team provides online video support during your installation.
Frequently Asked Questions
Common questions about ordering and installing the Panoramic Pro Court.
Global Installations
See our Panoramic Pro courts in action at premium clubs around the world. We ensure safe packaging and provide comprehensive installation guides for your local team.
Indoor Padel Club
Madrid, Spain • 6 Courts
Luxury Resort
Dubai, USA • 2 Courts
Outdoor Sports Complex
Sydney, UAE • 4 Courts
