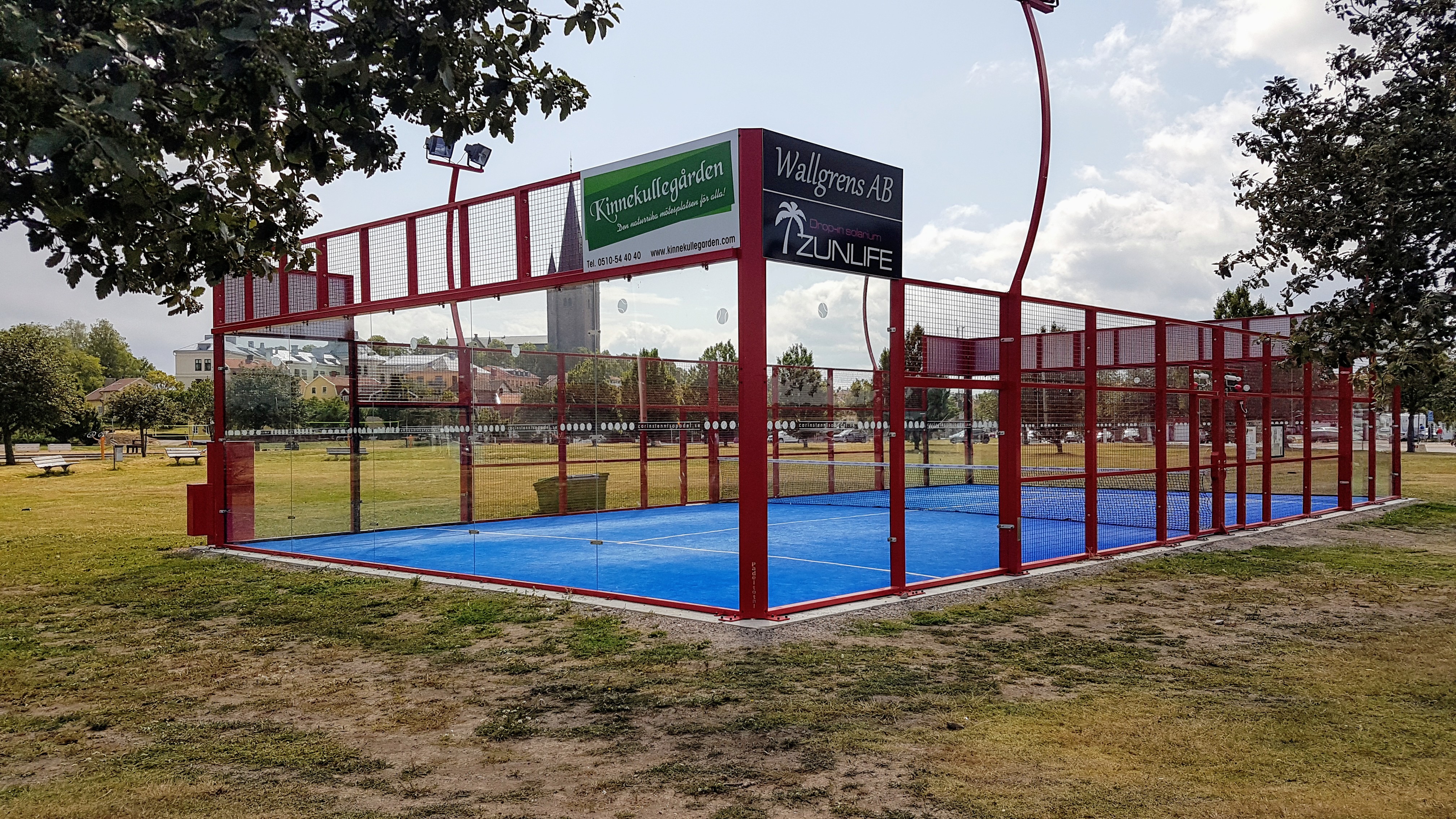

Classic Club Padel Court
The workhorse of any padel club. Featuring robust structural pillars at every corner, this model offers maximum durability, exceptional wind resistance, and a highly cost-effective solution for high-traffic environments.
Key Features:
- Pillar Structure: Reinforced steel pillars at corners for extreme stability.
- Glass Options: Compatible with both 10mm and 12mm tempered glass.
- Electro-welded Mesh: 50x50x4mm anti-injury mesh system.
- Cost-Effective: Lower initial investment and minimal maintenance.
Technical Specifications
Built to withstand the elements and heavy daily use, the Classic Club Court is the most reliable choice for outdoor installations and commercial facilities.
Dimensions
| Playing Area | 20.00m x 10.00m (Internal) |
|---|---|
| Total Footprint | 20.40m x 10.40m |
| Height | 3m (Sides) / 4m (Ends) |
Steel Structure
| Material | Structural Steel tube 80x80x2mm & 80x40x2mm |
|---|---|
| Anti-corrosion | Hot-dip galvanized (Optional) |
| Finish | Baked powder coating (Custom RAL) |
Glass System
| Type | Tempered Safety Glass (CE) |
|---|---|
| Thickness | 10mm or 12mm options |
| Panels | 14 panels (2x3m) + 4 panels (2x2m) |
Turf & Net
| Turf Options | 12mm Monofilament / Fibrillated |
|---|---|
| Sand Filling | Silica sand (0.3-0.8mm) |
| Net System | Professional net with hidden tensioner |
Customization & Components
Tailor your Classic Club court to match your club's aesthetic and operational requirements.
Professional LED Lighting
Choose between 4 or 8 light poles. Our 200W LED floodlights are designed with asymmetrical lenses to provide perfect illumination (up to 500 lux) while preventing glare for players.
Color Customization
The steel structure can be painted in any RAL color to match your corporate identity. Turf is available in Blue, Green, Red Clay, or Purple.
Anti-Injury Mesh
Electro-welded wire mesh (50x50x4mm) integrated perfectly flush with the glass panels to ensure a true bounce and protect players from injury during impact.
Export & Container Loading
As an export-oriented factory, we know that shipping efficiency and cargo safety are just as important as the product itself.
-
Secure Glass Packaging
All tempered glass panels are packed in custom wooden A-frames to guarantee zero breakage during ocean transit.
-
Container Optimization
A standard 40ft High Cube (40HQ) container can perfectly fit 3 complete Classic Courts, minimizing your shipping cost per unit.
Easy Local Assembly
We've engineered our courts to be assembled by any competent local contractor, eliminating the need for expensive imported installation teams.
-
Foundation Drawings Provided
We provide detailed ring beam and porous concrete slab requirements for your civil works team.
-
3D Manuals & Video Support
Includes step-by-step 3D assembly manuals. Our engineering team provides online video support during your installation.
Frequently Asked Questions
Common questions about ordering and installing the Classic Club Court.
